Machine Learning Models to Identify Anomalies in the Production of Flat Glass


Using Machine Learning to Detect Anomalies in Flat Glass Production


Pedro Gabriel Lima1

Noam Eyal Resnick1

Denis Leite1,2


Aristóteles Terceiro Neto3

Alexandre M. A. Maciel1



1Escola Politécnica de Pernambuco, Universidade de Pernambuco, Recife, Brasil.



2Mekatronik I.C. Automação Ltda, Recife, Pernambuco, Brazil.


3Vivix Vidros Planos, Recife, Pernambuco, Brazil.




DOI: 10.25286/repa.v9i1.2770


Esta obra apresenta Licença Creative Commons Atribuição-Não Comercial 4.0 Internacional.


Como citar este artigo pela NBR 6023/2018:

Pedro Gabriel Lima; Noam Eyal Resnick; Denis Leite; Aristóteles Terceiro Neto; Alexandre M. A. Maciel. Machine Learning Models to Identify Anomalies in the Production of Flat Glass. Revista de Engenharia e Pesquisa Aplicada, v.9, n. 1, p. 19-27, 2024.DOI: 10.25286/repa.v9i1.2770




Este trabalho apresenta uma proposta inovadora para a previsão de defeitos em processos industriais de refino de vidro. Embora seja um processo complexo com vários pontos que podem causar defeitos, a abordagem atual dos especialistas é apenas reativa, ou seja, eles só podem agir após o dano ter sido causado. Este estudo propõe o uso de dados coletados dos processos industriais de uma empresa real como um estudo de caso para criar modelos de previsão, a fim de identificar uma possível falha antes que ela ocorra. O objetivo é usar o SPC Charter como um modelo de entrega e permitir que os especialistas tomem medidas corretivas preventivas, evitando danos e reduzindo os custos de produção.


PALAVRAS-CHAVE: Inovação; Aprendizado de Máquina; Previsão de Defeitos; Vidro Plano; Controle Estatístico de Processos; Regressão Linear Múltipla.;




This work presents an innovative proposal for the prediction of defects in industrial glass refining processes. Although it is a complex process with several points that can cause defects, the current approach of specialists is only reactive, that is, they can only act after the damage has been caused. This study proposes the use of data collected from the industrial processes of a real company as a case study to create prediction models, in order to identify a possible failure before it occurs. The objective is to use multiple linear regression as a model and allow specialists to take preventive corrective measures, avoiding damage and reducing production costs.


KEY-WORDS: Innovation; Machine Learning; Defect Forecast; Flat Glass; Statistical Process Control; Multiple Linear Regression.






Glass is a versatile, hard and brittle material essential in human life, as it has applications in different types of industries and in everyday life. Despite the glass industry being a relatively little-known sector of the Brazilian economy, the glass market continues to evolve year after year. Recent industry indicators point out that even with a decrease in glass production, there was an increase in sales and import and export numbers [1][2].

The glass industry is divided into four segments, according to the manufactured product: flat, packaging, domestic and special or technical glass [3]. The flat glass manufacturing process is currently quite complex and has several points susceptible to defects in its production line [4][5].

The technological advancement brought about by the fourth industrial revolution (Industry 4.0) allowed the most recent industrial plants to collect and store a large volume of data, thus ensuring greater quality in their manufacturing process and in their manufactured products.




Currently, it is already possible to notify that an anomaly has occurred through several sensors installed in the production lines, thus generating a large mass of data [4][5] . With these data, some companies use classic techniques that monitor and improve the production process, such as statistical process control (SPC), or control chart [4][5] . However, these techniques are limited to analyze only facts that occurred in the past, not in the future. Therefore, the current challenge is to use past data to be able to predict future information and minimize possible defects.




The general objective of this work is to develop machine learning models that can predict possible anomalies in the flat glass production process. For this, the following specific objectives were defined:

    Understanding and analysis of existing variables in a flat glass production line.

    Treatment of data collected from a real database of a production line.

    Development and validation of predictive models.



The global flat glass market size was valued at USD 273.43 billion in 2021 and is forecast to grow at a compound annual growth rate (CAGR) of 4.3% over the years 2022 to 2030 [1]. The international glass market is very promising, taking into account that the export rate of flat glass in Brazil grew by more than 23% in the last year, even with falling production and productivity rates [2]. In this way, it is essential to minimize the amount of defects that occur in a glass creation process, as this can result in significant financial losses for glass companies.


Sem título.png

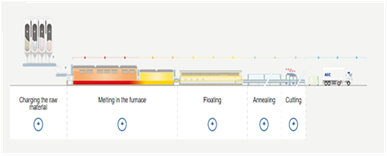

Figure 1 - The Glass Manufacturing Process.




The flat glass manufacturing process consists of 5 general steps [6]:

1.   Mixing the raw materials: The raw materials for the glass are kept in separate containers, the first step is to measure and mix the right amount of each element (sand, limestone, dolomite...)

2.   Furnace melting: The mixed elements are melted in the furnace at elevated temperatures (1550 °C)

3.   Flotation: The molten glass comes out of the furnace at high temperatures and rests on an aluminum pool where a glass sheet is formed.

4.   Annealing: After the flotation process, the glass sheet is placed on a conveyor belt where cooling takes place in a controlled manner to ensure flatness and reduce mechanical defects that can lead to breakage.

5.   Cutting: The glass sheet is cut into smaller sheets suitable for sale.


Throughout the process there are sensors that collect data and specialists monitor and provide information about the operation of the equipment. There are quality metrics that can be used to define the quality of the glass and the process used for its manufacture [7]:

1.   Thickness

2.   Flatness

3.   Light Transmission

4.   Optical Distortion

5.   Resistance




Machine Learning (ML) is a subfield of artificial intelligence that focuses on the development of algorithms and statistical models that allow computers to learn from data and perform specific tasks without being explicitly programmed for them [8]. In other words, the machine learns from examples and data, rather than having all the rules coded by a human programmer. There are several types of problems that can be addressed using Machine Learning (ML). Some of the most common types of problems in ML are: Classification, Regression, and Clustering. To solve the proposed problem, grouping and classification algorithms were chosen.


2.1.2   Predictive Algorithms


The multiple linear regression model is the most applied statistical technique for relating a set of two or more variables, the concept of a regression model was introduced to study the relationship between two quantitative variables X and Y.

The concept of a regression model was introduced to study the relationship between two quantitative variables X and Y, The assumed linearity of the relationships makes the models convenient both mathematically and computationally. This simplicity and flexibility have made linear regression the most popular statistical framework across the sciences and standard textbook material.

We first formalize the framework of linear regression. We assume that there are n real-valued observations  and corresponding vector-valued observations  each pair () is called a sample. The samples are modeled according to  for all i {1,..., n}, where the vector β  that summarizes the model parameters  is called the regression vector (which is the same across the samples) and  the noise (which can be different from one sample to another) [9].



2.2 RELATED WORKS


Carvalho [4] in his study evaluated the application of Statistical Process Control (SPC) in the flat glass production process in a family factory in Brazil. The author used control charts to monitor and analyze process data and compared the results with those obtained by traditional methods of quality control. Overall, the study concludes that SPC can be an effective tool to monitor and control quality in the glass production process. Using control charts allows for early detection of process variations and defects, which can help reduce waste, improve productivity, and improve product quality.

Similarly, the research study by Reis [5] also evaluates the application of SPC in the glass manufacturing process. The author concludes that the use of SPC can help reduce defects, improve production efficiency, and improve overall product quality in the glass industry. Reis [5] also emphasizes the importance of training and proper implementation of SPC techniques to ensure their effectiveness.

The work “Development of Machine Learning models to predict glass quality of melting furnace” [12] is an example of application of Machine Learning in the glass industry, where it was successful in predicting glass defects from the recycling process.




In this work, we will follow the standard CRISP-DM process for data mining methodology proposed in [13]. This model has become the de facto standard for data mining, gaining widespread use by the emerging data mining community.




The proposed project was carried out in partnership with the flat glass manufacturer VIVIX, one of the most modern flat glass factories in the world and the only large one in the country with 100% national capital.

To support the development of this work, stakeholders from the Vivix industry and the Mekatronik technology supplier were involved. Board 1 shows the role and role of the stakeholders involved in the project.



Board 1 - Table of Stakeholders Involved.



Industrial Transformation Coordinator

Responsible for quality
control of the process

Technical Lead from the
Hired company

Responsible for data access

Source: Authors.




The data provided by VIVIX is collected by the hired company Mekatronik from the MkAnalytics 4.0 tool, through which manufacturing data is integrated for real-time management. The data used represent a real and significant sample of the base used by the company VIVIX in one of its production lines during the period from 2016 to 2022.


3.2.1 Data Dictionary


Board 2 - Board of Data Dictionary.







Parameter name

Amostra 4 - Titulação



Parameter Identifier





Group name which the parameter belongs to

Testes – Deposição de prata



Form used to collect the parameter’s value

CEPVIX Transformados - Espelhos



Parameter’s value at a collection point




Maximum of normal values




Minimum of normal values




Datetime of value collection

2022-08-15 3:00:00



Variation between current and last collection values






























Source: Authors.


The data dictionary is a collection of definitions about the data values that will be used in the job. From the definition of a data dictionary, it is possible to standardize the variables used and explain what all variable names and values really mean. The dictionary is described in Board 2.



After the data pre-processing step, one of the best practices for analysis is to create visualizations that can help identify patterns and trends in the data. For this, some visualizations were created using specific tools, such as graphs and tables.

Among the views generated, Figure 1 stands out, which presents the missing data matrix per parameter. This matrix is important because it allows identifying which parameters have missing values and the amount of missing data in each of them. With this information, it is possible to define strategies to deal with missing data, such as filling in missing values or excluding records that are missing excessive data.

In short, creating visualizations is a key step in data analysis, as it provides a better understanding of the data and assists in making evidence-based decisions.


Board 3 - Parameter Alias Table.



Condutividade Água aplicação líquida


Nível de Vidro - PV


pH Água aplicação líquida


ppm O2 banho 1


ppm O2 banho 2


ppm O2 banho 3


ppm O2 White Martins


Source: Authors.


To facilitate visualization, the paper will refer to the parameter name's alias as shown in Board 3, instead of the parameter`s full name.

As shown in Figure 2, rows with missing data were removed and columns with few data were also dropped.

Despite the pre-processing performed to normalize the data, we still have a lot of missing data that has been normalized using the mean of the parameter.

Figure 4 allows the visualization of some parameters that are more related to each other; ppm O2 bath 1, ppm O2 bath 2, ppm O2 bath 3 and Conductivity water liquid application with pH water liquid application.

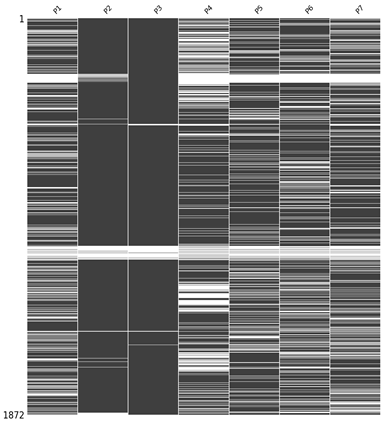

Figure 2 - Missing Data Matrix.

Imagem em preto e branco

Descrição gerada automaticamente com confiança média

Source: Authors.

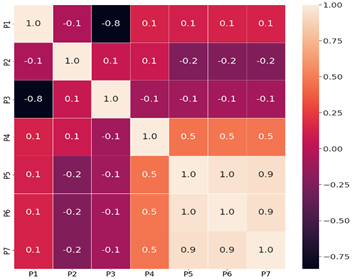

Figure 3 - Correlation Matrix Among Parameters.

Gráfico, Calendário

Descrição gerada automaticamente com confiança média

Source: Authors.

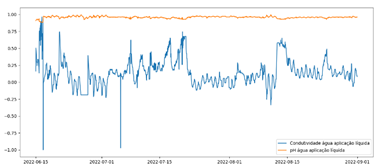

Figure 4 - Line graph pH water liquid application x Conductivity water liquid application.


Descrição gerada automaticamente com confiança média

Source: Authors.

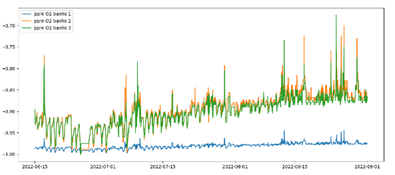

Figure 5 - Line graph ppm O2 bath 1 x ppm O2 bath 2 x ppm O2 bath3.

Gráfico, Gráfico de linhas

Descrição gerada automaticamente

Source: Authors.

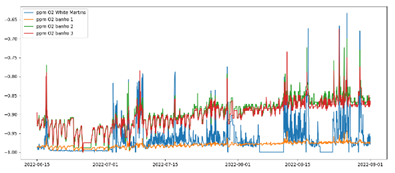

Figure 6 - Line graph ppm O2 bath 1 x ppm O2 bath 2 x ppm O2 bath3 x ppm O2 White Martins.

Gráfico, Gráfico de linhas

Descrição gerada automaticamente

Source: Authors.


These groups were shown graphically in figures 4, 5 and 6 containing the values of the time series of the figures in the same graph.

3.3.1 Predictive Data Analysis

The purpose of predictive analysis is to create a machine model capable of classifying a value from a given sensor. For the forecasting process we use multiple linear regression in the clustered data generated by the clustering algorithms. The complete process is described in the flowchart of Figure 7.


Figure 7 - Flowchart describing the predictive classification experiment process.


Descrição gerada automaticamente com confiança média

Source: Authors.


DBSCAN and K-Means algorithms were used for grouping. Clustering was performed using data from the time series of each variable independently and the time series of some variables together. These variables together were chosen based on their correlation seen in figure 3.

The groups are:

• PPM O2 bath 1, PPM O2 bath 2, PPM O2 bath 3

• PPM O2 bath 1, PPM O2 bath 2, PPM O2 bath 3, PPM O2 White Martins

• Conductivity water liquid application, pH water liquid application

a) Clustering using K-Means

To perform a grouping using K-Means it is necessary to choose the value of K (number of groups). For this, we use the “elbow” method to choose the optimal amount per treated data set.

For datasets dealing with a single parameter we have a one-dimensional time series, the only variable being the sensor value at each time point. Thus, it is possible to order the points sequentially and facilitate the grouping of K-Means. As for the sets dealing with groups of sensors, it is necessary to reduce the dimensionality of the data to 2 so that the distance function has meaning. For this, the PCA (Principal Component Analysis) algorithm was used, which provides the parameters with the greatest significance at a given point.


b) Clustering using DBSCAN

For the DBSCAN algorithm, it is possible change two parameters: the minimum distance between points to define a new group (eps) and the minimum number of points to be considered a group (n). The algorithm was executed 9 times (eps equal to 0.01, 0.05 and 0.1 and n equal to 1, 2 and 3) and after analyzing the resulting graphs, the values of eps equal to 0.05 and n equal to 1 were chosen. Also in K-Means with one-dimensional sets, the ordering of values before execution was used to improve performance, but in this case it was not necessary to reduce dimensionality for larger sets since DBSCAN supports grouping of N-dimensional data.


c) Classification Using K-NN

A classification algorithm needs labels in the training phase, an attribute not present in the original data. For the purpose of data classification, it was used the sets resulting from the clustering phase as labels for each data point. With the labeled data the first step of the classification process was the division of data for training and testing. It was decided 70% for training and 30% for testing with the points being chosen randomly. The K-NN algorithm was run for each previously grouped group and generated the confusion matrices based on the test set for analysis.

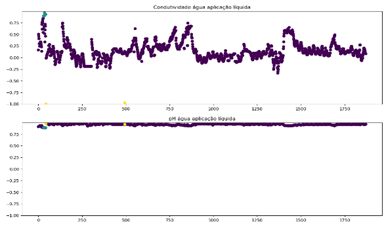

Figure 8 - DBSCAN Clustering Conductivity x pH.

Gráfico, Gráfico de linhas

Descrição gerada automaticamente

Source: Authors.



Figure 9 -  DBSCAN PPM O2 Bath Grouping.


Descrição gerada automaticamente com confiança média

Source: Authors.

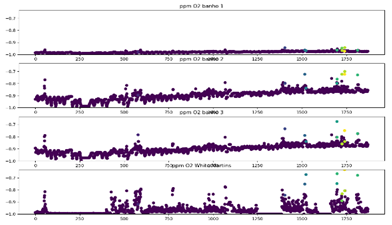

Figure 10 - DBSCAN PPM O2 Baths + White Martins grouping.


Descrição gerada automaticamente com confiança média

Source: Authors.

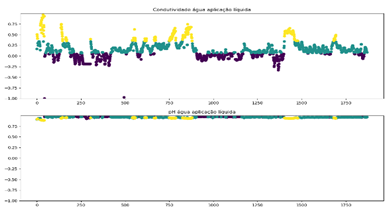

Figure 11 - K-Means Clustering Conductivity x pH.


Descrição gerada automaticamente com confiança baixa

Source: Authors.

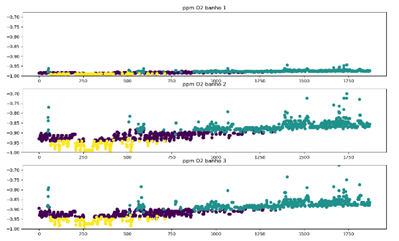

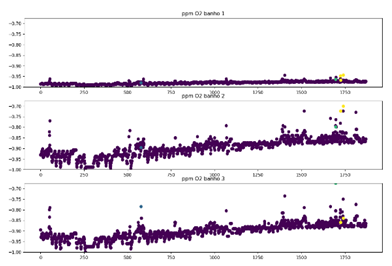

Figure 12 - K-Means PPM O2 Bath Grouping.

Uma imagem contendo Gráfico

Descrição gerada automaticamente

Source: Authors.

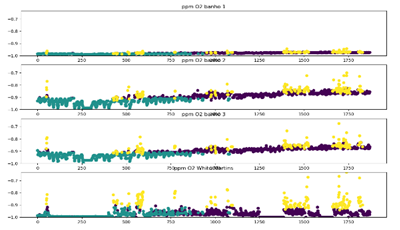

Figure 13 - K-Means PPM O2 Baths + White Martins grouping.

Linha do tempo

Descrição gerada automaticamente

Source: Authors.

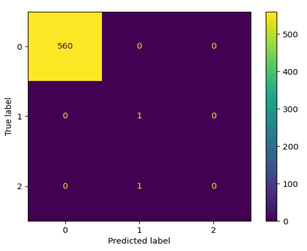

Figure 14 - Confusion Matrix - Classification  Conductivity x pH  DBSCAN.


Descrição gerada automaticamente

Source: Authors.

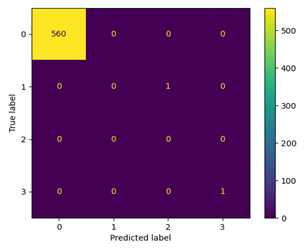

Figure 15 - Confusion Matrix – Classification PPM O2 Baths DBSCAN.


Descrição gerada automaticamente

Source: Authors.

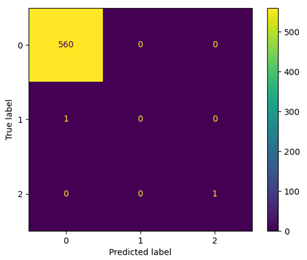

Figure 16 - Confusion Matrix - Classification PPM O2 Baths + White Martins DBSCAN.


Descrição gerada automaticamente

Source: Authors.

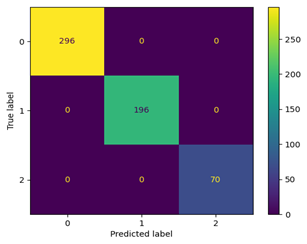

Figure 17 - Confusion Matrix – Classification Conductivity x pH K-Means.


Descrição gerada automaticamente

Source: Authors.


Figure 18 - Confusion Matrix - Classification PPM O2 Baths K-means.


Descrição gerada automaticamente

Source: Authors.

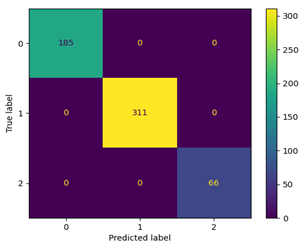

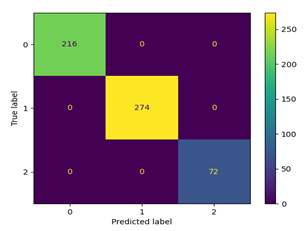

Figure 19 - Confusion Matrix - Classification PPM O2 Baths + White Martins K-Means.


Descrição gerada automaticamente

Source: Authors.




This work was completed with the presentation of its results to the stakeholders and, the implementation of the models was the responsibility of the company.

Due to the low mean variation, the DBSCAN algorithm grouped most of the data points into a single group leaving only the outliers in separate groups. K-Means, on the other hand, forced the division of the points into 3 sets (which was the optimal case calculated using the elbow method) dividing the points into low, medium and high. A difference appears in the PPM O2 Baths + White Martins group where DBSCAN finds 4 groups and K-Means finds 3.

In the classification, we can clearly see that a grouping using K-Means generates a much more accurate classification in K-NN, since the accuracy rate in this model was 100%, with DBSCAN as the labeling base, K-NN had a low error. This error can also be caused by the fact that most points belong to a single group in DBSCAN, unlike K-Means where data points are better distributed among groups.
